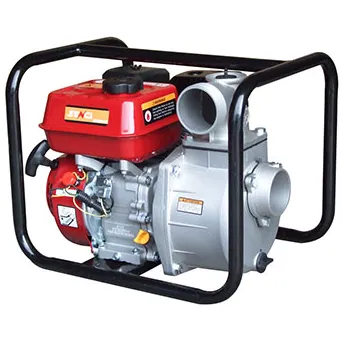

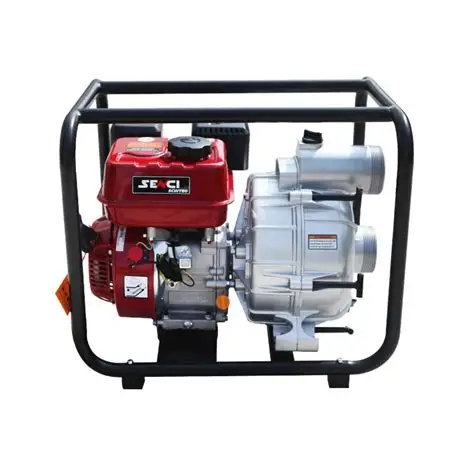

Water Pump Diesel Senci 3Inch

Core Technical Specifications

• Inlet/Outlet Diameter: 3 inches (80 mm).
• Maximum Flow Capacity: Up to 60,000 liters per hour (1,000 L/min).
• Maximum Total Head: 28 to 30 meters.
• Maximum Suction Lift: 7 to 8 meters.
• Engine Type: Air-cooled, 4-stroke, single-cylinder OHV diesel engine.
• Starting System: Manual recoil pull-start or optional electric key-start.

Key Benefits

• High Efficiency: Diesel engines offer superior fuel economy and higher torque compared to gasoline models for extended continuous operation.
• Solid Handling: The 3-inch ports allow the internal volute to process water containing suspended solids and light silt up to 3/4 inch in size.
• Rugged Construction: It is housed in a heavy-duty steel roll-cage frame to protect the engine components and facilitate easy job site transport.

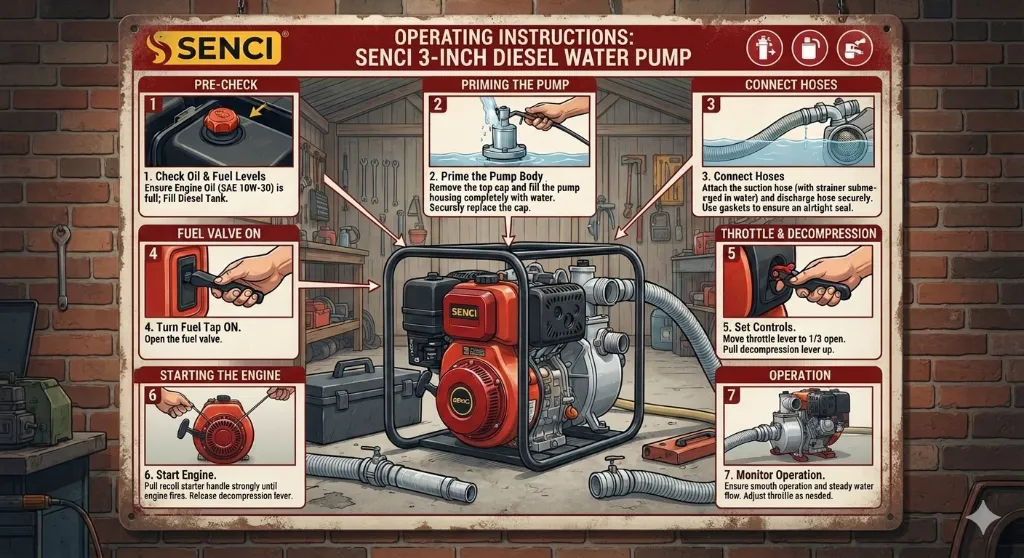

Step-by-Step Operating Instructions

[ Pre-Check ] ──> [ Priming ] ──> [ Starting ] ──> [ Shutdown & Clean ]

1. Pre-Operation Fluid Check

• Engine Oil: Place the pump on a level surface. Remove the dipstick and verify the diesel engine oil is filled up to the thread line.
• Fuel: Fill the tank with clean, fresh automotive diesel. Do not let the tank run completely dry during use to avoid getting air trapped inside the fuel injection lines.

2. Priming the Pump (Crucial)

• Never run the pump dry. Running it dry will destroy the internal mechanical seals within seconds.
• Remove the priming plug located on top of the pump casing.
• Pour clean water into the hole until the pump chamber is completely filled and overflowing.
• Securely tighten the priming plug back into place.

3. Starting the Engine

• Open Fuel Valve: Turn the fuel delivery valve or fuel cock to the "ON" position.
• Set Throttle: Move the engine speed/throttle lever to roughly the halfway position.
• Engage Decompression: Locate the small decompression lever on top of the engine valve cover and press it down. This releases compression so the engine can spin freely.
• Cranking:
  • For Electric Start: Turn the ignition key. The starter motor will spin the engine, the decompression lever will snap back up automatically, and the engine will catch.
  • For Recoil Start: Pull the starter rope slowly until you feel resistance, return it, then give it a fast, strong pull.

4. Post-Use Maintenance

• Move the throttle lever back to "Slow" or "Stop" to cut fuel and stop the engine. (Note: On diesel engines, turning the ignition key to off generally does not stop the engine; you must use the fuel throttle lever).
• Unscrew the drain plug at the bottom of the pump casing to drain all residual water out of the unit. This stops corrosion and prevents freezing damage during storage.

Frequently Asked Questions (FAQ)

Operation & Setup

• Do I need to prime the pump before starting?
  • Yes, always fill the pump chamber with clean water through the top priming plug before starting the engine. Running the pump dry will permanently warp or destroy the mechanical seals.
• What type of water can this pump transfer?
  • It is engineered strictly for fresh, non-potable water. Do not pump thick mud, chemical waste, salt water, or highly flammable liquids like gasoline.
• How should I set up the suction hose?
  • Use a rigid, reinforced suction hose that will not collapse under vacuum pressure. You must attach the included strainer/filter basket to the submerged end to block stones or large debris from entering and jamming the internal impeller.

Maintenance & Fuel

• What oil should I use and how often should I change it?
  • Use premium SAE 10W-30 engine oil. Check the oil dipstick before every use. Drain and replace the oil completely after the first 20 hours of break-in operation, and every 50 hours of use thereafter.
• Does it feature an engine protection system?
  • Yes, most commercial Senci pumps include an automatic low-oil shutdown sensor. This automatically cuts engine power if the oil drops below safe limits, preventing catastrophic engine seizure.

Troubleshooting

• The engine is running but no water is discharging. What is wrong?
  • Check for common issues outlined in Senci's Pump Guide: ensure the pump housing is entirely primed, inspect the suction hose for air leaks or punctures, and verify the foot valve or strainer isn't blocked by debris.
• Can the pump be run inside a shed or garage?
  • Never operate the engine indoors. Diesel exhaust contains dangerous carbon monoxide gas, which can be fatal if inhaled. Operate the machine outdoors at least 1 meter away from walls to ensure adequate ventilation.
