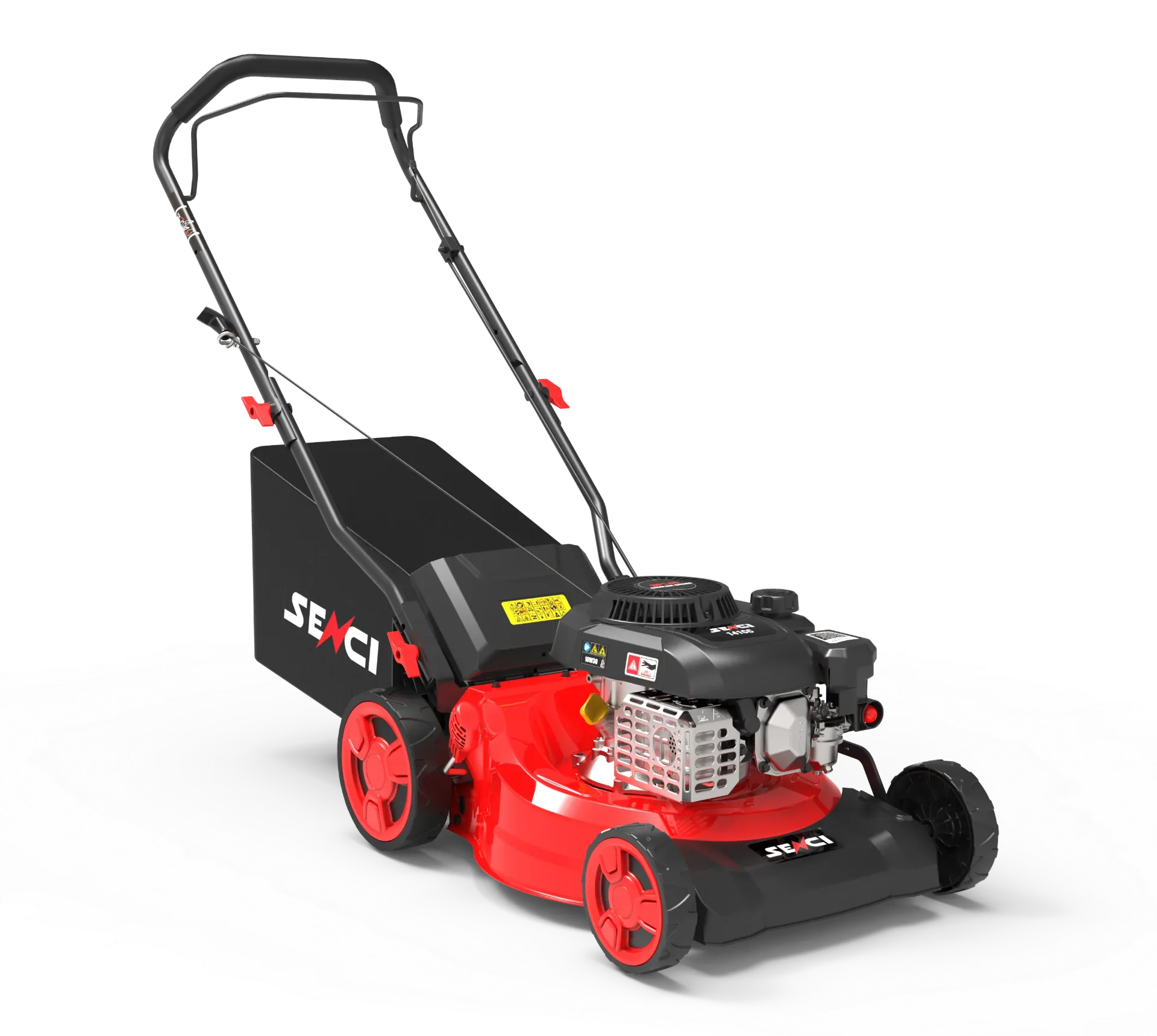

Lawn Mower Senci LMB17P01

Key Specifications

• Engine Type: Senci SP140, 141cc displacement
• Power Output: 2.3 kW
• Cutting Width: 17 inches (410 mm)
• Deck Material: Durable steel chassis
• Drive Type: Hand push / manual propulsion
• Cutting Height Range: 3-stage adjustment ranging from 28mm to 68mm
• Height Adjustment: Options for individual wheel or central adjustment depending on exact regional variant

Core Design Features

• Ergonomic Handling: Built with a comfortable rubberized grip handle and an easy-pull recoil starter system.
• Smooth Mobility: Heavy-duty wheels equipped with double ball bearings to ensure smooth pushing over uneven terrain.
• Grass Collection: Designed primarily with a 2-in-1 rear discharge and rear bagging system, compatible with durable fabric grass catcher bags.

Frequently Asked Questions (FAQ)

Operation & Starting

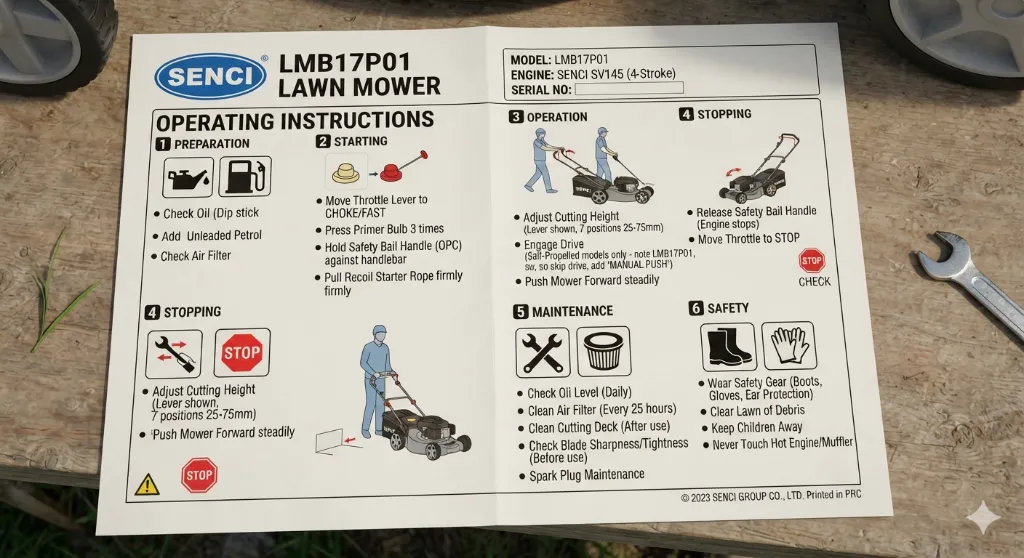

• How do I start the Senci LMB17P01 for the first time?
  • Fill the crankcase with fresh 4-stroke engine oil.
  • Fill the fuel tank with fresh unleaded gasoline.
  • Press the red primer bulb 3 times to move fuel into the carburetor.
  • Pull and hold the safety bail arm against the main handle.
  • Pull the starter recoil rope firmly and quickly.
• What should I do if the engine floods?
  • Release the safety handle completely.
  • Wait 5 to 10 minutes for excess fuel to evaporate.
  • Pull the starter rope without using the primer bulb.
• Why does the engine stall or refuse to start?
  • Stale fuel: Gas left in the tank for over 30 days degrades and clogs the carburetor.
  • Dirty air filter: A clogged filter chokes the engine air intake.
  • Fouled spark plug: Carbon buildup stops the spark from igniting fuel.

Maintenance & Care

• What type of oil does this mower use?
  • Standard 4-stroke SAE 30 or 10W-30 small engine oil.
• How often should I change the engine oil?
  • Change the oil after the first 5 hours of "break-in" use.
  • Change it every 50 hours of operation or once every season thereafter.
• How do I adjust the cutting height?
  • Locate the central height adjustment lever near the wheels.
  • Move the lever into one of the 3 slots to select 28mm, 48mm, or 68mm cutting heights.

Local Support & Parts

• Where can I buy this mower or find replacement parts in PNG?
  • You can purchase the mower and check for replacement components at Chemica Ltd's Online Shop.
• How do I clean the mower deck safely?
  • Disconnect the spark plug wire first to prevent accidental starting.
  • Tip the mower backward (handles down) rather than sideways to keep oil out of the air filter.
  • Scrape away packed grass clippings using a plastic putty knife.
