Micrometer-Digital display 0-25mm

Product Description

Instant Accuracy: 0-25mm Premium Digital Outside Micrometer
Eliminate human reading errors and accelerate your workflow with industrial-grade digital precision. This 0-25mm Digital Outside Micrometer features a crystal-clear LCD display that delivers instantaneous readouts with an ultra-fine resolution of 0.001mm (0.00005"). Built for high-volume manufacturing, machine shops, and strict quality control environments, this tool bridges the gap between raw speed and laboratory accuracy.
Why Choose This Digital Engineering Tool?

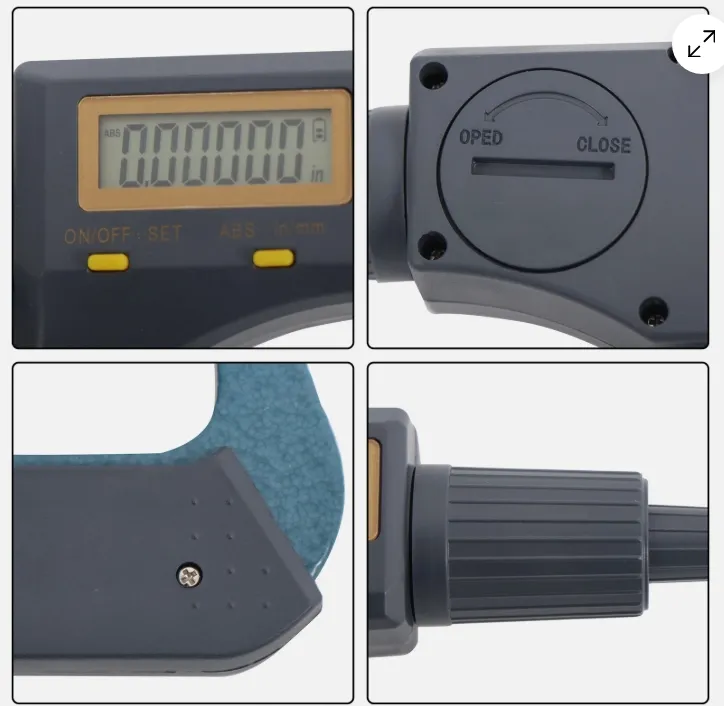

  • High-Contrast LCD Display: Get large, easy-to-read numbers instantly. No more squinting at micro-fine analog lines or guessing half-millimeter steps.
  • One-Touch Metric / Inch Conversion: Toggle between millimeter and inch units with a single button press to streamline multi-blueprint workflows.
  • Carbide-Tipped Measuring Faces: Hardened, precision-ground anvil and spindle surfaces minimize wear over years of continuous mechanical contact.
  • Friction Thimble / Ratchet Stop: Delivers uniform measuring pressure onto the workpiece to ensure perfectly repeatable results, independent of user hand strength.
  • Absolute & Incremental Modes: Switch seamlessly between absolute measurements (from zero) and incremental zero-setting for relative thickness comparisons.
  • Heavy-Duty Protective Frame: Engineered with a rugged, balanced C-frame featuring a thermal shield to prevent body heat from warping calibration dimensions.
Technical Product Specifications

  • Measurement Range: 0 to 25 mm (0 to 1 inch)
  • Resolution: 0.001 mm / 0.00005 in
  • Accuracy Tolerance: ±0.002 mm
  • Protection Rating: IP54 dust and splash resistant
  • Data Output: Optional data transfer port (interface cable sold separately)
  • Package Includes: Precision digital micrometer, protective fitted hard storage case, CR2032 battery, adjusting spanner, and user manual
 Frequently Asked Questions (FAQ Section)

Q: What are the main benefits of a digital micrometer over an analog one?
A: Digital micrometers offer unmatched reading speed, an automated LCD screen that prevents reading errors, and the ability to convert metrics instantly from millimeters to inches. They also allow for easy zero-calibration at any position for comparative incremental testing.
Q: How do I zero-calibrate this digital micrometer?
A: Clean the carbide faces completely with a lint-free cloth. Gently turn the friction thimble until the anvil and spindle touch smoothly. Once the ratchet clicks, press and hold the "ZERO" button until the screen reads 0.000.
Q: What does the IP54 rating mean for this tool?
A: The IP54 rating signifies that the electronic housing is highly protected against dust contamination and resilient against splashing liquids from any direction, making it perfectly safe for active machine shops with flying oil, coolant, or debris.
Q: How long does the battery last, and what happens if it dies?

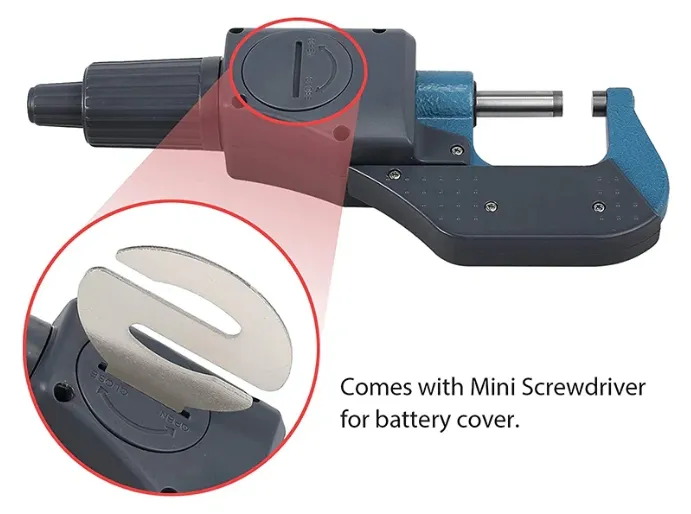

A: Powered by a standard CR2032 lithium battery, the device features an auto-off energy-saving function to maximize battery life up to 1-2 years under typical daily use. If the battery dies, simply replace it via the threaded battery cap on the face panel.

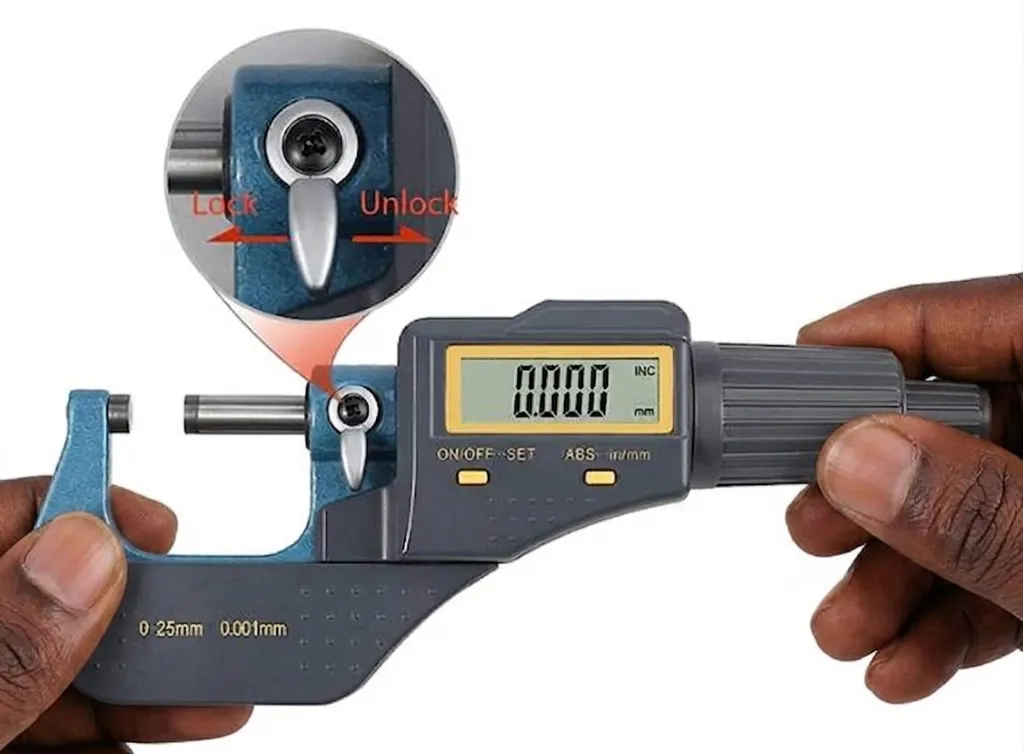

Q: Can I lock the measurements on this device?
A: Yes. The device features a manual locking lever located right next to the spindle. Swiveling this lever firmly clamps the spindle in place so you can lock your reading or compare parts side-by-side without moving the numerical readout.
