Water Pump Diesel Senci 4Inch

Core Technical Specifications

According to official product documentation from Senci:

• Inlet / Outlet Diameter: 100 mm (4 inches)

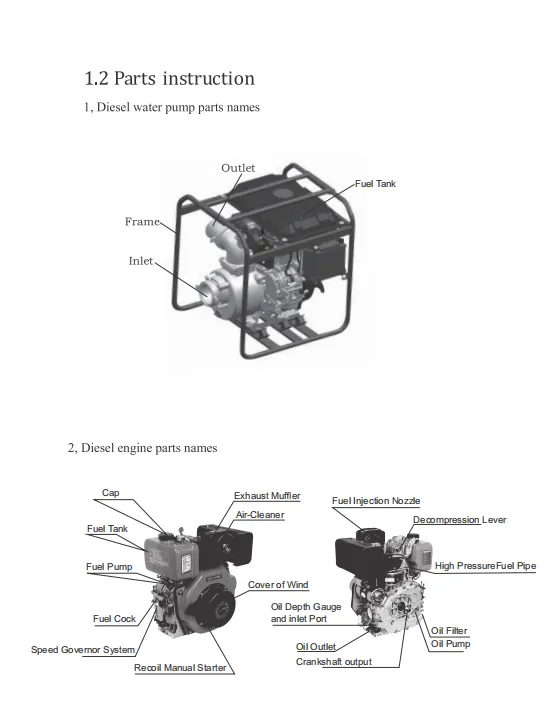

• Engine Type: 186F / 188FE Single-Cylinder, 4-Stroke, Air-Cooled Diesel Engine
• Engine Displacement: 418cc to 456cc
• Maximum Flow Rate: 90 to 95 m³/h (approx. 1,500 to 1,583 liters per minute)
• Maximum Head Lift: Up to 30 to 50 meters total vertical lift
• Maximum Suction Depth: 7 meters
• Starting System: Dual Recoil (pull start) and Electric Start
• Fuel Tank Capacity: Large 12.5-liter tank providing up to 6 hours of continuous operation
• Net Weight: Roughly 85 kg to 107 kg (typically mounted on a heavy-duty wheeled steel frame for mobility)

Key Benefits and Features

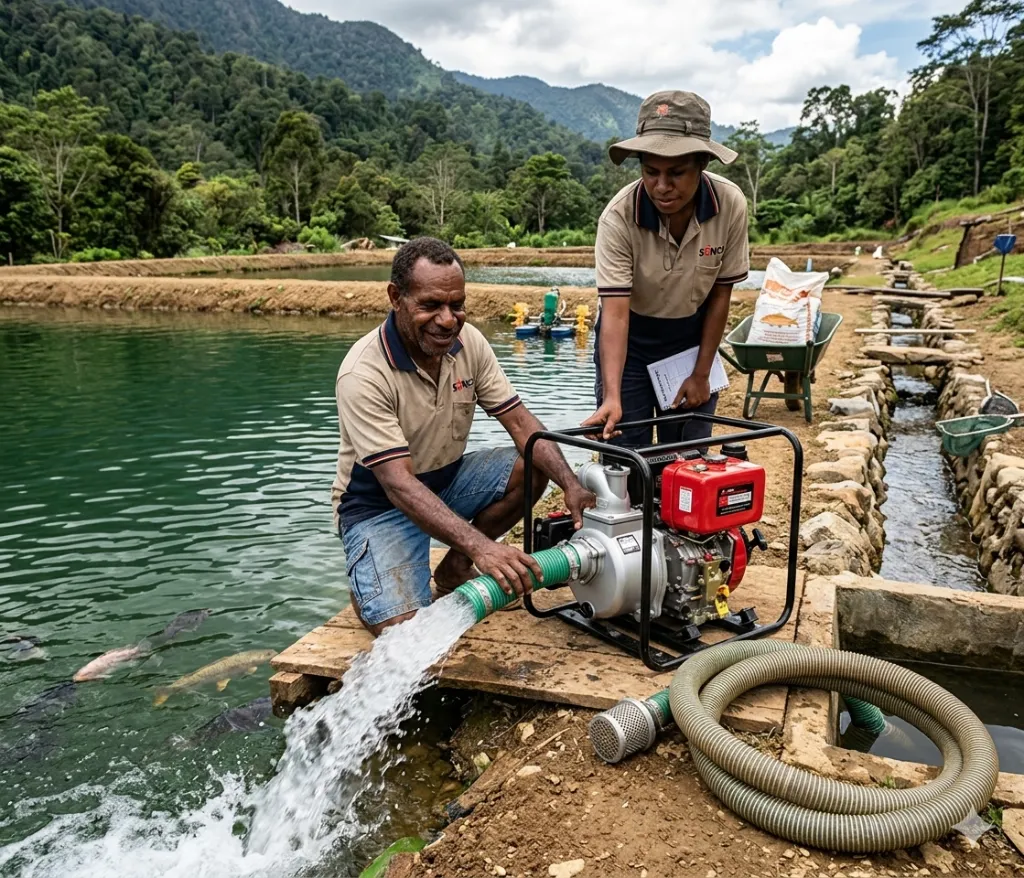

• High-Volume Output: It is highly optimized for agricultural irrigation, draining large flooded areas, and construction-site dewatering.
• Fuel Efficiency: The diesel engine configuration consumes significantly less fuel per hour compared to equivalent gasoline models during extended use cycles.
• Rugged Build: Features a cast-iron pump volute and impeller housed within a thick, powder-coated safety frame to handle harsh outdoor environments.

Global Procurement and Logistics

1. Retail Supply: For individual local purchases, it is sold through international suppliers like Chemica Ltd.

Frequently Asked Questions (FAQs)

Operation & Performance

• What is the primary application for a 4-inch Senci diesel water pump?

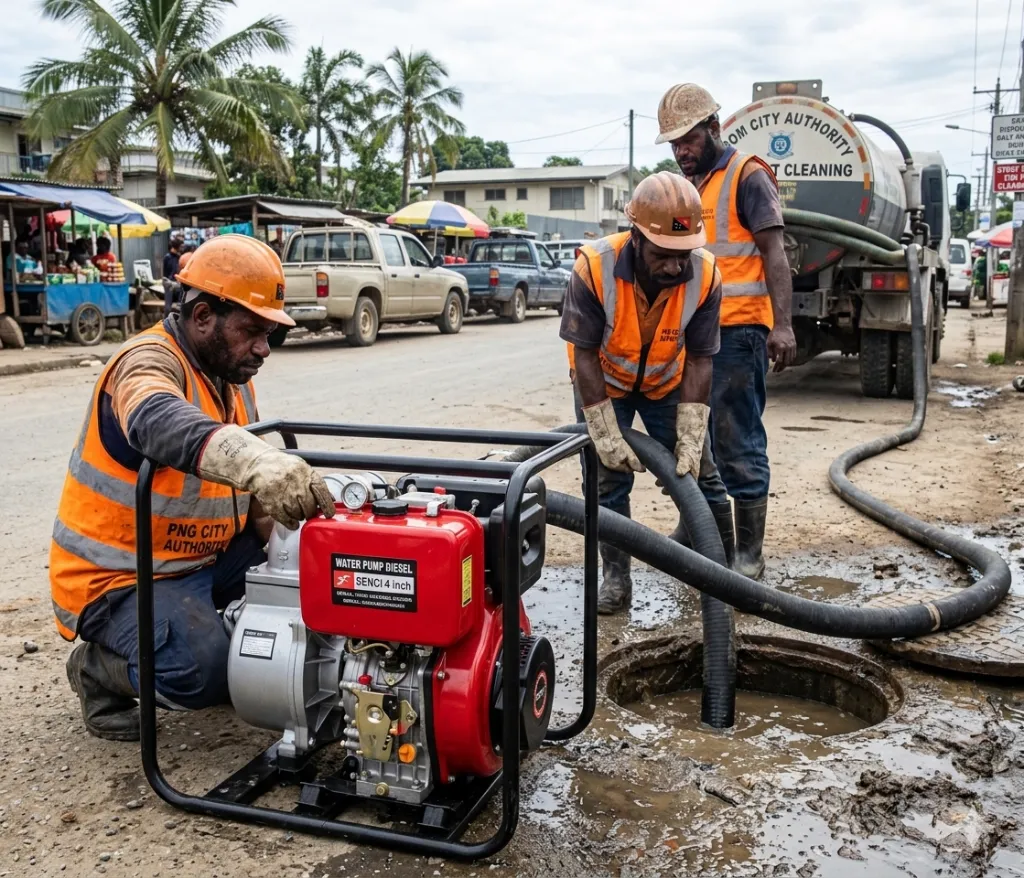

  • It is built for high-volume agricultural crop irrigation, large-scale drainage, flood control, construction site dewatering, and shifting thick or slushy water mixtures.

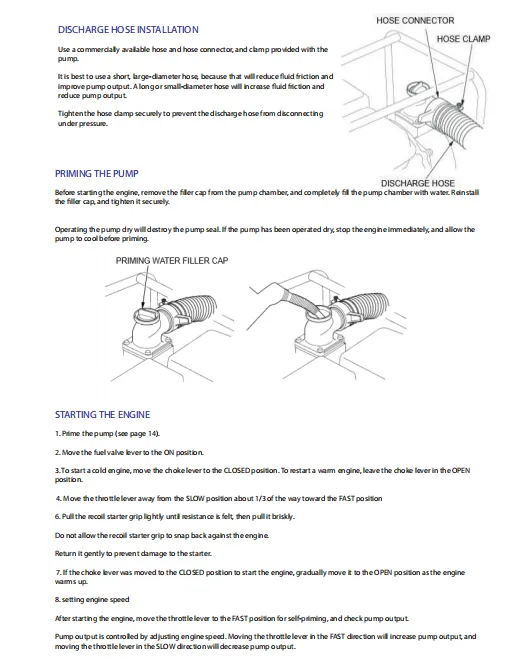

• Does the pump need to be primed before every use?
  • Yes. While it features a self-priming design, you must fill the pump casing completely with water through the priming plug before turning on the engine. Running it dry will instantly destroy the mechanical seals.

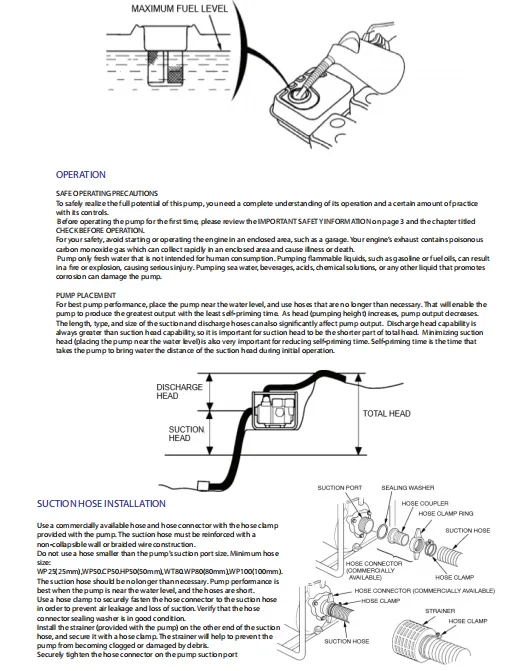

• How can I maximize the water output and flow rate?
  • Place the pump as close to the water source level as possible to reduce the suction lift head. Keep suction hoses short, tightly sealed, and completely straight.
• Can this pump be used to transport chemicals or saltwater?
  • No. The standard cast-iron and aluminum internal fittings are strictly designed for clear water or muddy agricultural slush. Corrosive chemical or saltwater transfer requires specific stainless steel or plastic chemical pumps.

Maintenance & Troubleshooting

• What type of oil and fuel should I use?

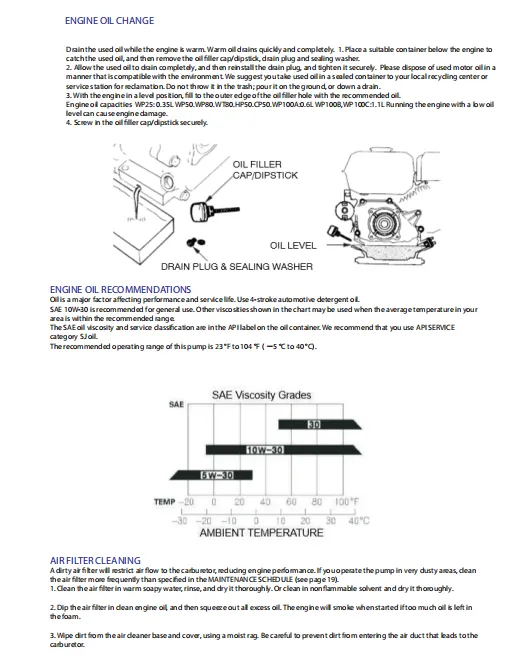

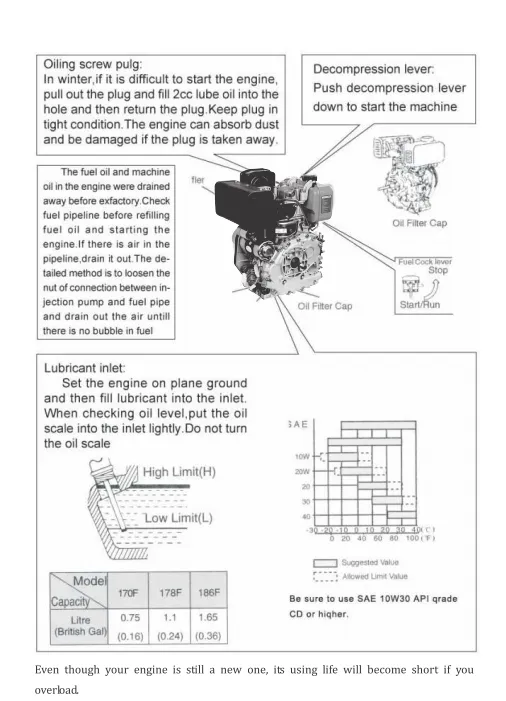

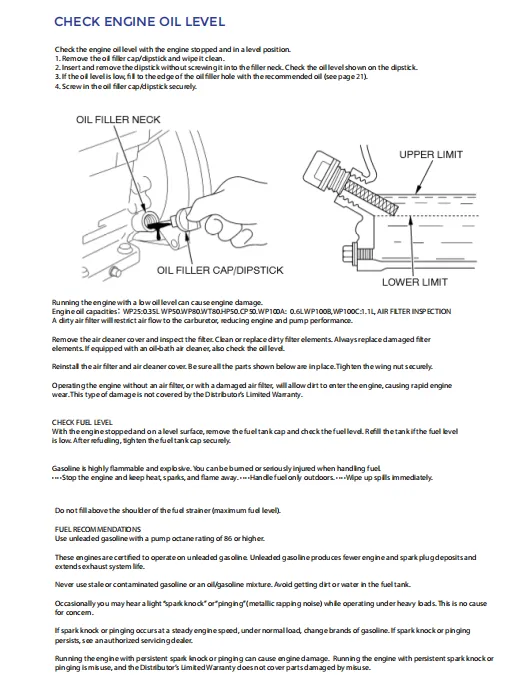

  • The engine runs exclusively on standard automotive diesel fuel. For engine lubrication, use high-quality heavy-duty diesel engine oil (typically 15W-40 or 10W-30 depending on your local climate), checked via the dipstick before every start.
• Why is my engine running but no water is pumping out?
  • Check for an air leak in the suction hose or loose hose clamps, which prevents a vacuum from forming. Alternatively, verify the pump casing is full of water and that the intake filter screen isn't clogged with mud or debris.

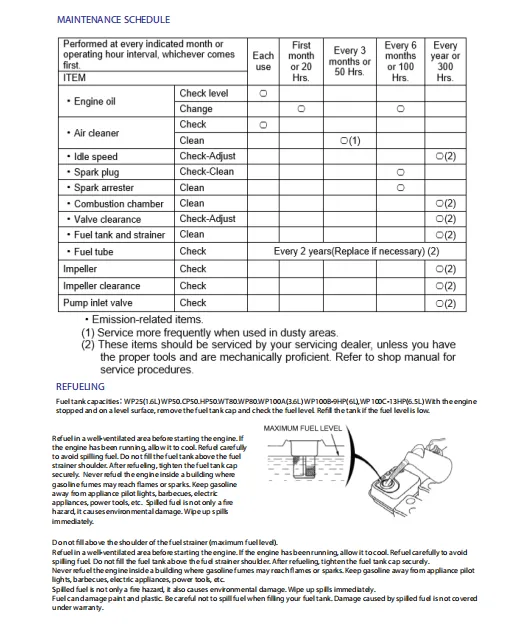

• How often should I clean the internal filters?
  • Clean the intake hose filter basket daily during active use. Check the engine air filter and clear the dust unloader valve every 10 to 20 operating hours to maintain proper fuel combustion.

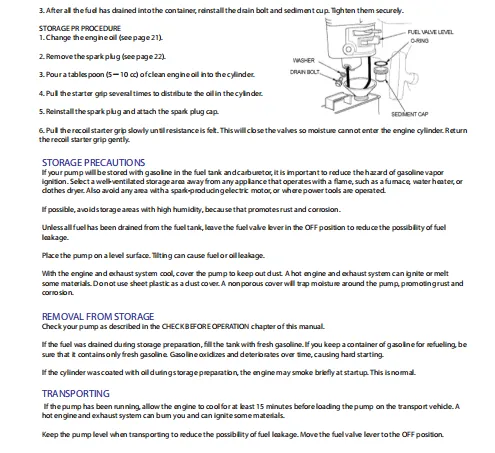

What should I do before storing the pump for the winter?
• • Open the lower pump chamber drain valves to completely empty out residual water to prevent freezing or interior rust. Turn off the fuel valve, clean out the sediment bowl, and safely cover the unit in a dry place.
